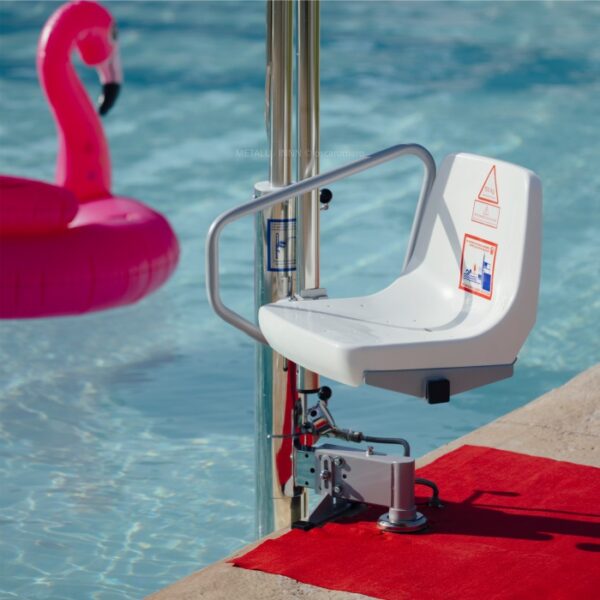

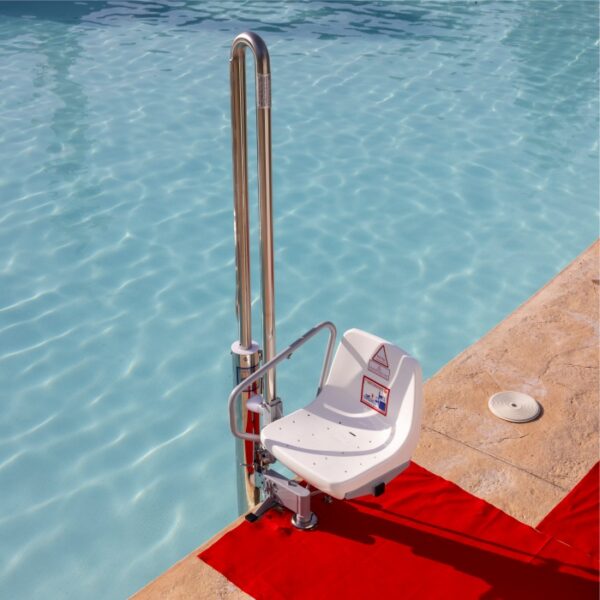

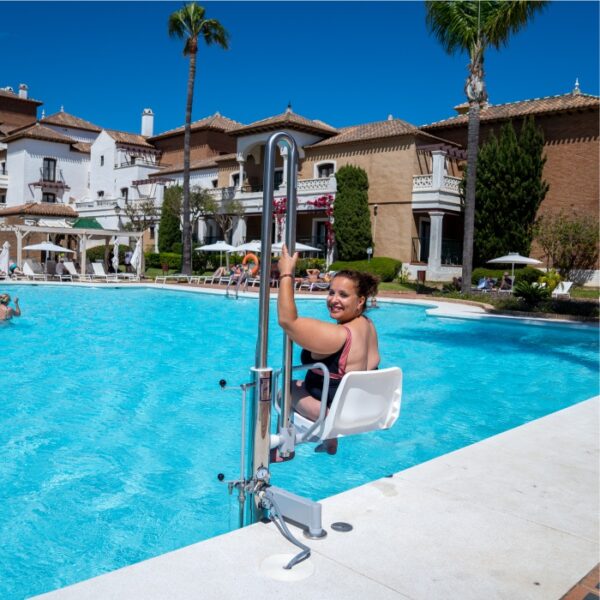

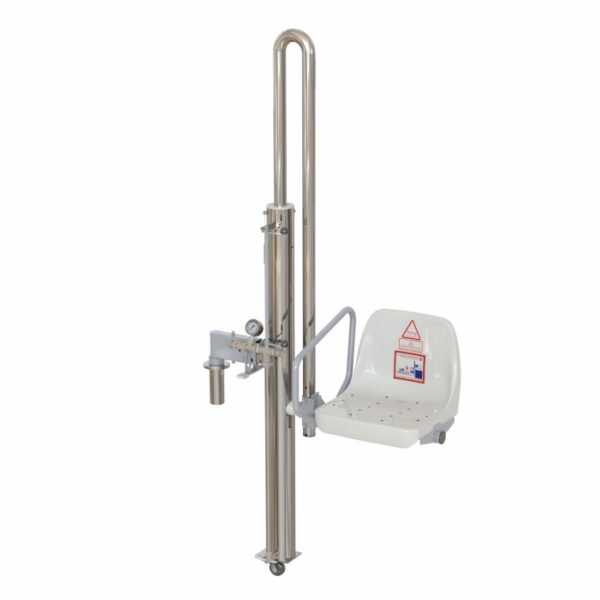

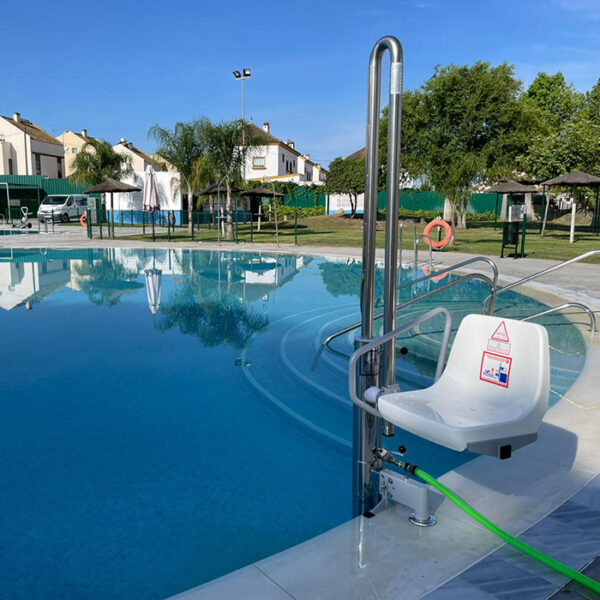

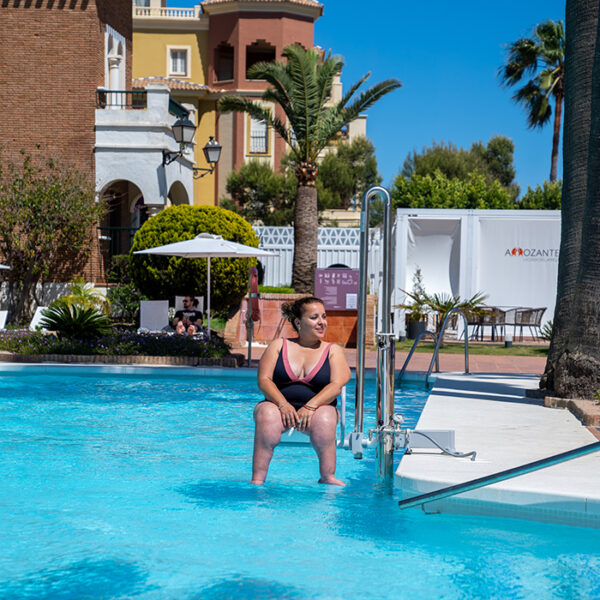

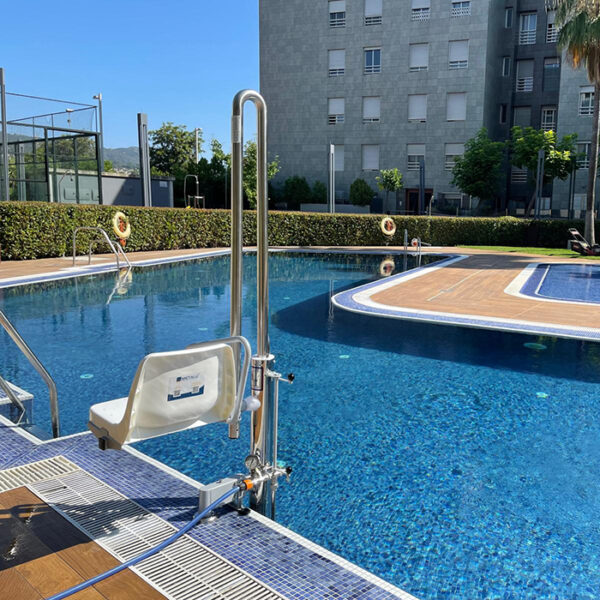

Portable Hydraulic Pool Lift METALU PK

The METALU PK is the smallest and most discreet portable hydraulic pool lift on the market. It offers the key advantage of being installed only when needed and stored when not in use, making it ideal for serving multiple pools within the same facility.

Features of METALU PK portable hydraulic elevator

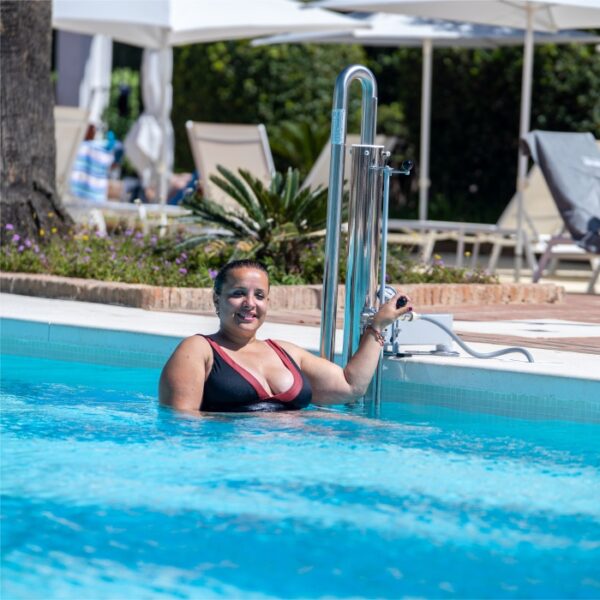

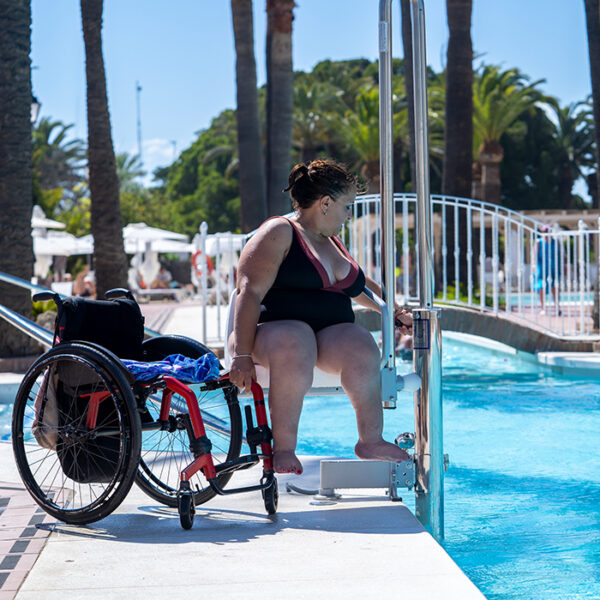

  • Independent User Operation. The METALU PK lifter can be operated from both inside and outside the pool with the operating lever located to the right of the user.
  • Portable. It is easily transported thanks to the lower wheel that incorporates, being able to give use to several pools. In addition, its seat is removable.
  • Lifting Capacity. Approved to lift up to 150 kg, requiring a water intake with a pressure between 3.5 and 5.5 bar, depending on the desired lifting capacity.

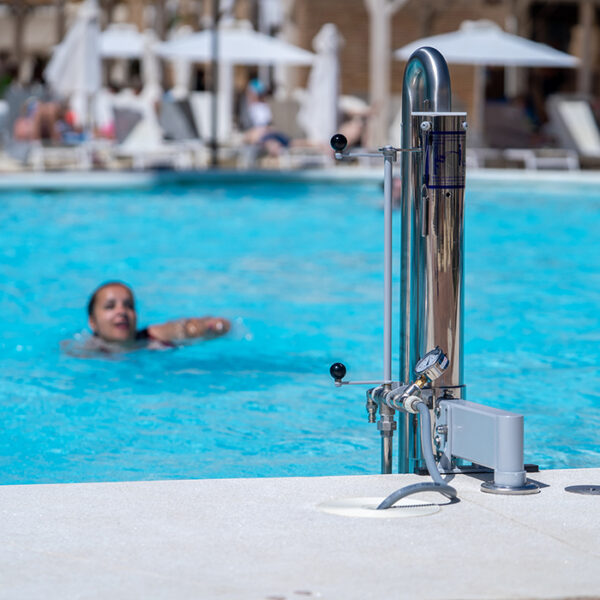

  • It includes a manometer to check the water pressure received by the lift.
  • Manufactured with high-quality AISI 316 L stainless steel.
  • CE Certification.
  • Adaptable to the pool profile. We have different sizes of anchorages to avoid possible obstacles and rotation in both directions, both right and left.
  • Storage stand. Includes a stand for easy storage during periods of non-use.
  • Five-year warranty on all spare parts in the event of a manufacturing defect.
  • European Manufacturing: All lifts are produced in our facilities in Spain.
  • Immediate Availability: Factory dispatch within 24-48 hours from order confirmation.
  • Complements: Safety belt, folding arm, footrest, auxiliary shower or top for polyester or liner pools.
  • Right turn, descent clockwise (factory default).
  • Left turn, counterclockwise (must be specified in the order).
  • Manufactured in AISI 316 stainless steel.
  • Turning angle: 180° clockwise (descending).
  • Turning radius: 700 mm.
  • The seat has a travel range of 1.06 m.
  • Net weight: 38 kg.
  • Packed weight: 49 kg.
  • No load rise time (depending on pressure): 24 seconds.
  • Rise time with 85 kg load (depending on pressure): 27 seconds.
  • No-load lowering time: 50 seconds.
  • Lowering time with 85 kg load: 22 seconds.
  • Water capacity in the piston: 9 liters.
  • Minimum depth of the vessel in the installation zone: 0.90 meters.

STAINLESS STEEL. AISI 316L.

180º turning radius.

700 m/m turning angle.

1.06 m of seat travel.

150 kg lifting capacity.

3.5 bar minimum pressure.

38 kg net.

49 kg packed.
